Pioneers in geometries

SSppeeccssSSppeeccss

Our most exclusive spec

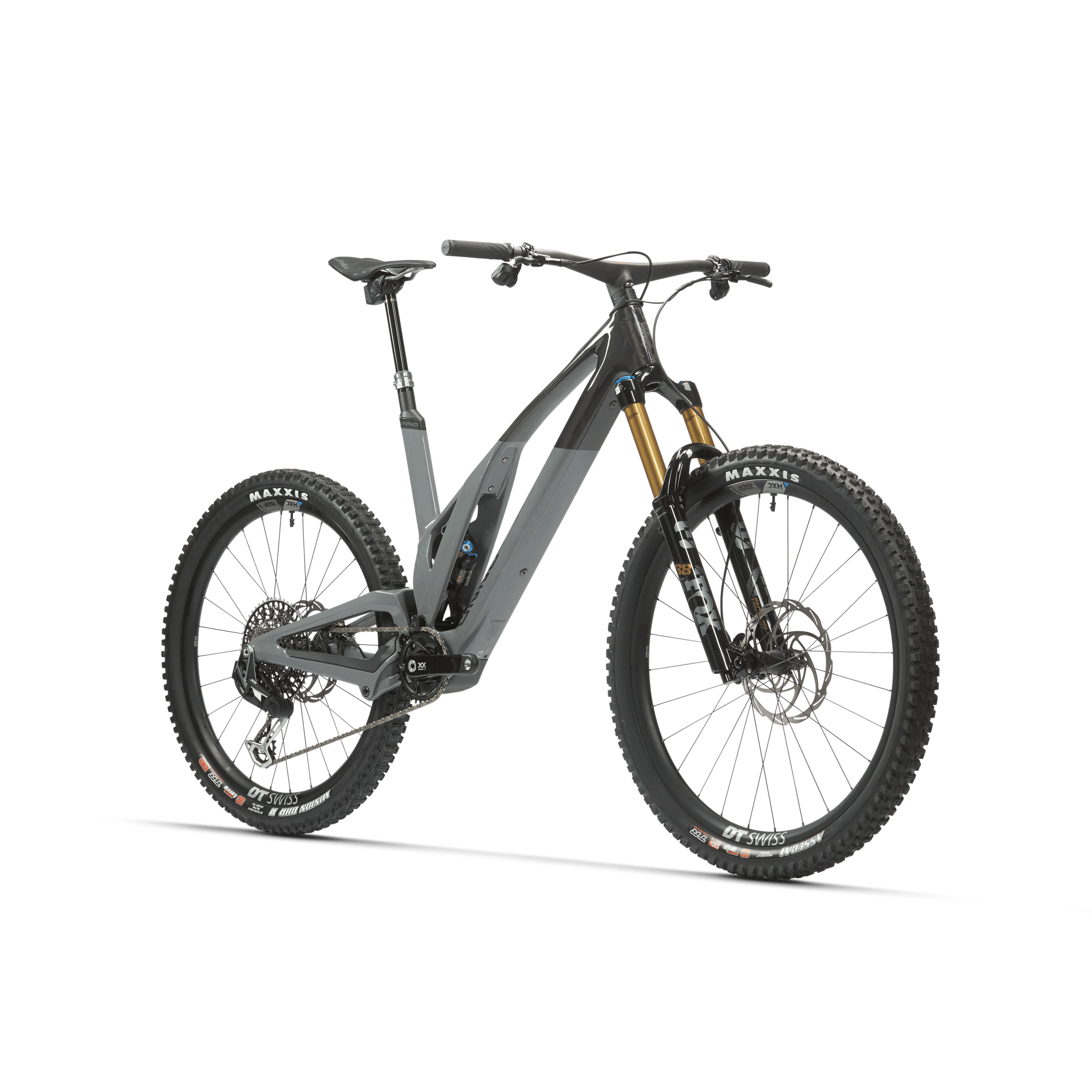

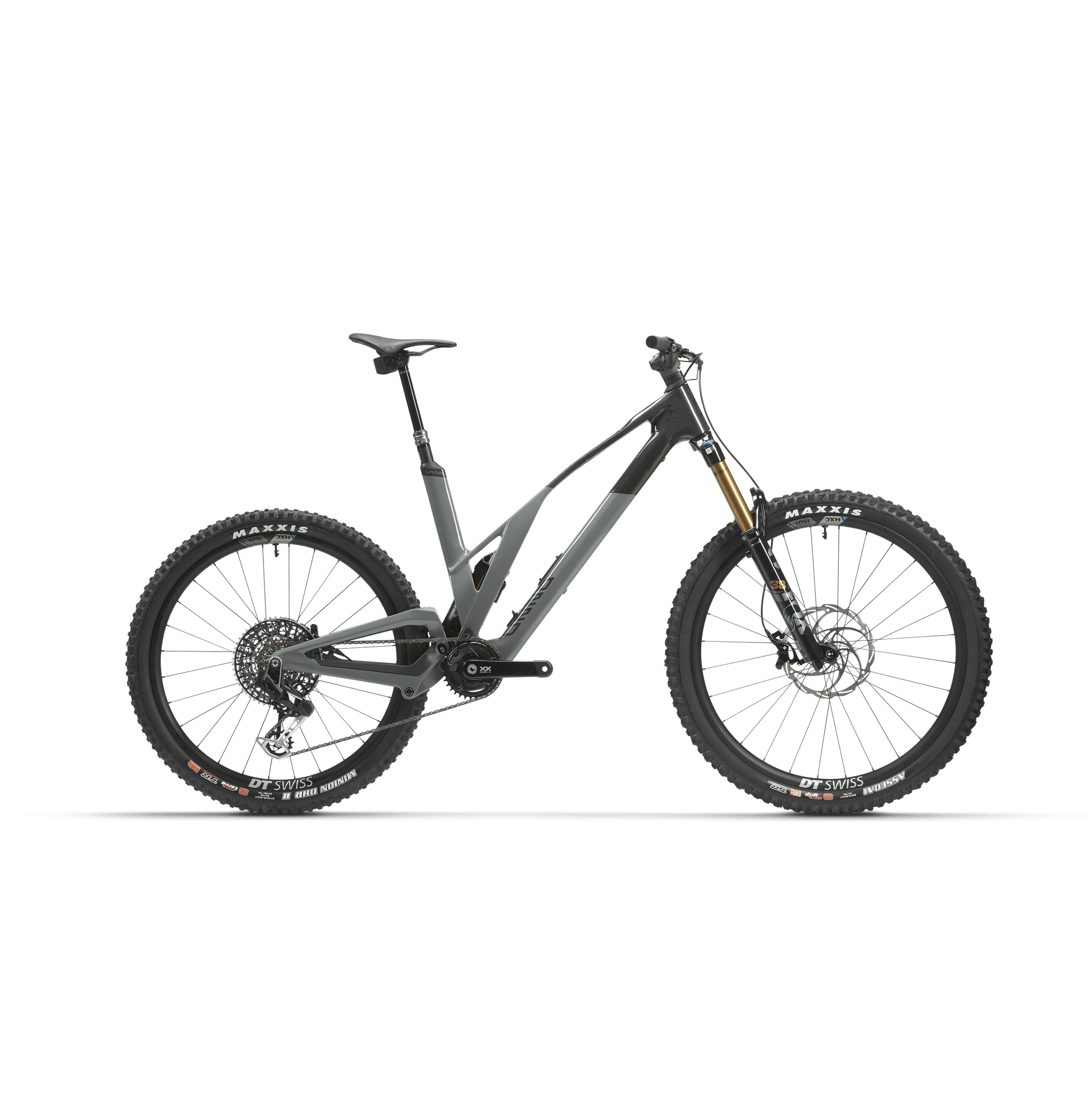

Factory is our top spec build, with just a few units being produced each year. Featuring Fox Factory suspensions, SRAM XX AXS transmission, Reverb AXS seatpost and DT Swiss carbon wheels.

Frame and motor

Frame
Unno IKKI: Carbon fibre monocoque with 160mm of rear travel. Virtual pivot suspension system. Integrated display, battery, chain guide and seat tube clamp. Motor protector. EnduroMAX Bearings. Internal cable routing. Boost thru axle 12x148. Post Mount brake system. Max tire width: 2.6”. Oceanworks recycled plastic parts. Recycled rubber protectors. Recommended sag: 35% (+/- 5%).
Motor
TQ HPR50: With Harmonic PingRing. 50Nm power. 300W power. Connection ready with ANT+ app.
Battery
TQ 360Wh: Integrated.
Display
TQ HPR50 Display: Integrated in top tube.
Controller
TQ HPR50 Remote: Compact and ergonomic design, accessible from the grip.
Headset
Acros Internal Cable Routing: IS52. 1.5 / 1.5, with Acros spider with entry ports for cable routing.

Suspensions

Fork
Fox 38 Factory: 170mm travel. Kashima coating. Grip 2 damper. 15x110 axle. Adjustments: HSC, LSC, HSR, LSR. 44mm offset.
Shock
Fox Float X2 Factory: 230x65mm. Kashima Coating. 2-pos lever. VVC Rebound.
Adjustments: HSC, LSC, HSR, LSR.

Transmission

Derailleur
SRAM XX AXS: 12 speed. Wireless. T-Type. Silver. Weight: 450g (Powerpack battery included).
Controller
SRAM AXS Pod Ultimate: Wireless. 12 speed. Concave design.
Cassette
SRAM XX: T-Type. 12 speed. XS-1297. Weight: 385g. Finish: Black. Range: 520% (10-52).
Chain
SRAM XX: Flat top. 12 speed. Hollow pin.
Crankset
SRAM XX: 12 speed. Carbon. DUB. For T-Type transmissions. Length: 165mm.
Chainring
SRAM XX: TQ Direct Mount, 34T.

Wheelset

Wheels
DT Swiss HXC1501 Spline: Carbon. Front: 29". Rear: 27.5". Inner width: 30mm. DT 240 hub.
Front Tyre
Continental Kryptotal-F Enduro: 29x2.40. Foldable skin SL. Black/Black.
Rear tyre
Continental Kryptotal-R Enduro: 27.5x2.40. Foldable skin SL. Black/Black.

Brakeset

Brakes
Formula Cura 4: 4x18mm pistons on Caliper. SRAM Mixmaster. Sintered Pads. Axial Master Cylinder. Forged Aluminium. 850mm front hose and 2000mm rear hose.
Discs
Formula Monolitic: 220mm front and 203mm rear rotors. Thickness: 2.35mm. Extreme lateral stiffness, anti-noise and anti-vibrations design.

Cockpit & Seat

Cockpit
DEUX Enduro Integrated: With integrated and hidden wedge. Internal fork tube clamp. 800mm width. 40mm length. 20mm rise.
Dropper
RockShox Reverb AXS: Electronic. Left bridge. 125mm (S1) 150mm (S2) 175mm (S3).
Saddle
Selle Italia SLR Boost: Kit carbon.
