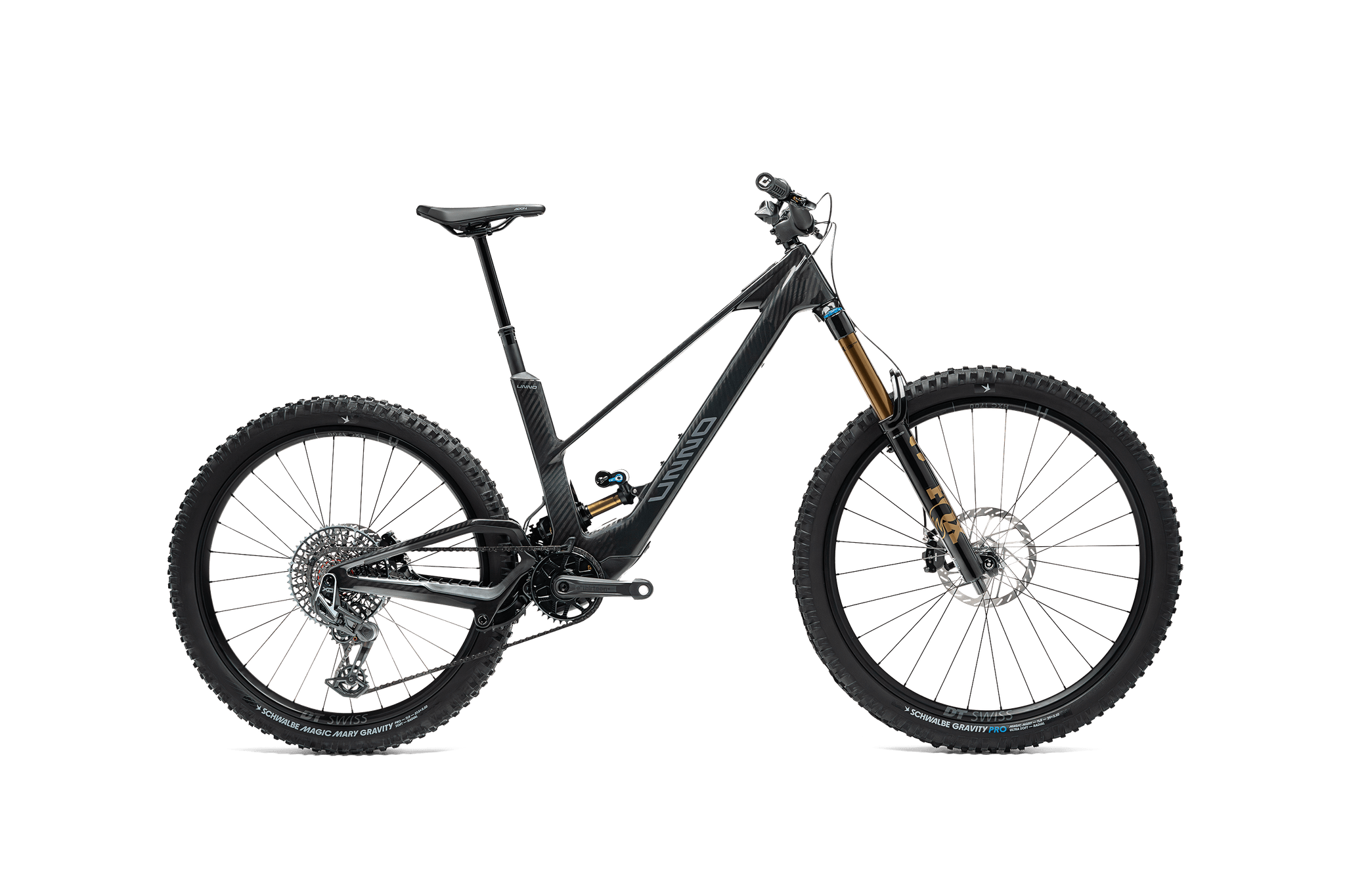

Unno MITH Factory

Fast
By Design.

The new MITH is built around one idea: speed.​
Not just on paper, but on the trail, where it matters.​

With the latest Avinox drive system, 800Wh battery, and a refined full-carbon platform, the MITH delivers instant power, precise handling, and a ride feel that stays unmistakably UNNO.​

170/160mm of travel. Mullet setup.​

Designed and engineered in Barcelona.​

The first MITH already redefined what a full-power E-MTB could feel like. Lighter, cleaner, and faster on the trail than anything else out there. Now, with more brands entering the space, we’ve gone further.
More power. More refinement. Same focus:
build the fastest bike on the trail.

MITH FACTORYMITH PROMITH RACE

EE--SSYYSSTTEEMM

E-SYSTEM

POWER
delivered differently

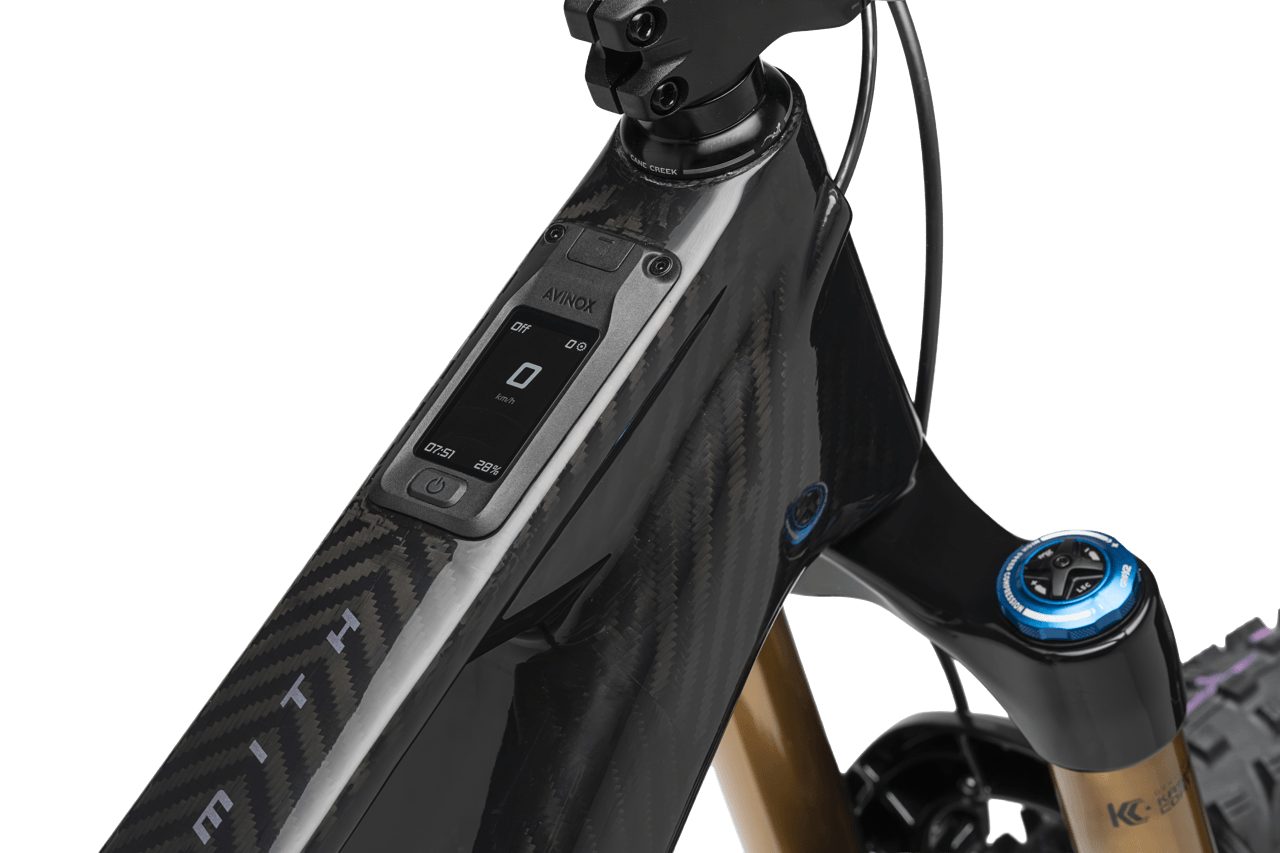

At the heart of the MITH is the latest Avinox drive unit.​

Light, compact, and delivering up to 130Nm of torque, it brings immediate response without disrupting the ride feel. The system integrates seamlessly into the frame, keeping the bike quiet, balanced, and predictable.​

Paired with an 800Wh battery and fast charging, it’s built for long days and repeated laps, without compromise.​​

This isn’t just about power.​
It’s about how that power feels.

Unknown image

PROVEN WHERE IT COUNTS​

Speed isn’t claimed, it’s tested.​

In independent testing, the MITH consistently came out fastest on the descents, where motor output doesn’t matter, and only the bike does.​

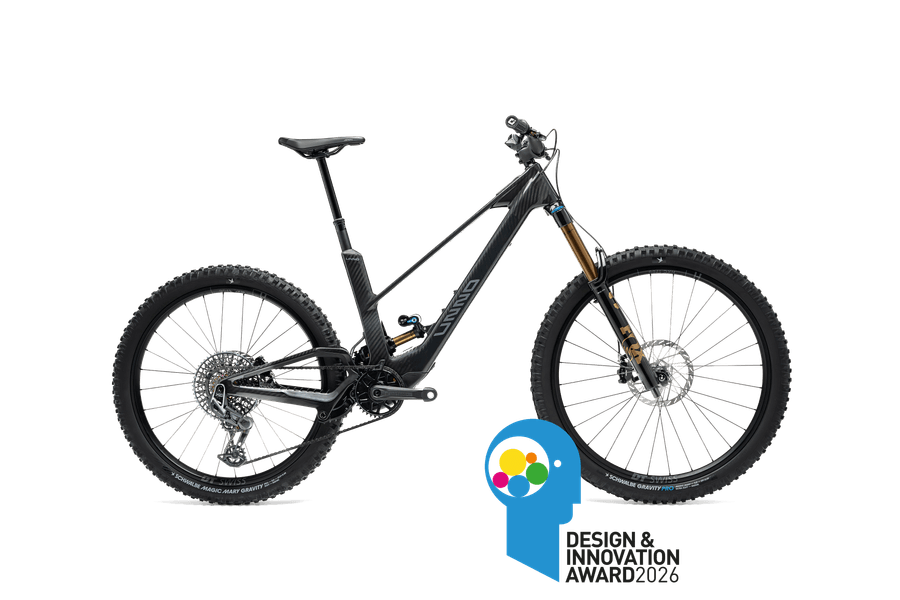

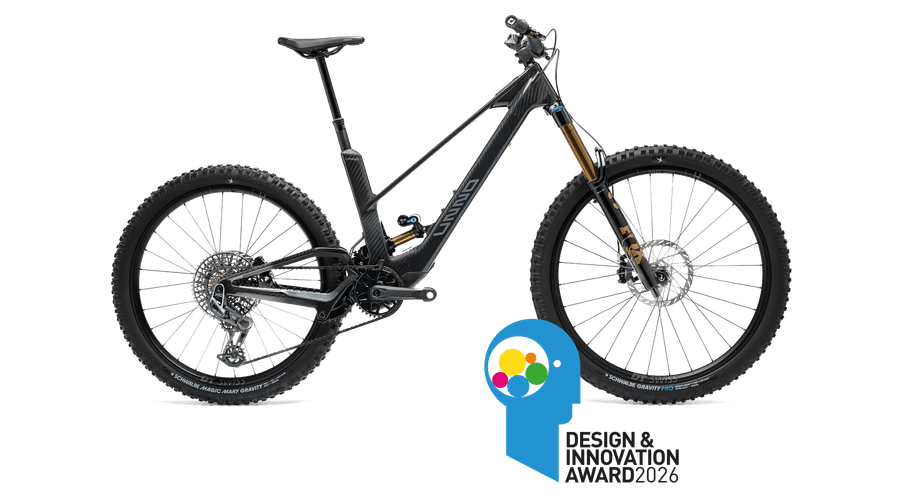

​That same approach to performance and design has been recognized with the Design & Innovation Award 2026.​

That’s where UNNO stands apart:​
Design, kinematics, and ride feel developed to perform when gravity takes over.

Unknown image
READ THE ENDURO MAG TEST HERE

FULL GRAVITY BUILD WITH DH CASING TIRES

​

21,9 KG

At just 21.9 kg with a full 800Wh battery and gravity-ready build, the MITH stays agile where others feel heavy.​

​That balance - power and control - is what defines how fast the bike really is.​

​

fast charger included

508W fast-charger with GaN technology included. 800wh battery charged from 0% to 75% in 1h 30min and from 0% to 100% in 2h 25min.

Unknown image

DDEEVVEELLOOPPMMEENNTT

DEVELOPMENT

BUILT TO HANDLE SPEED​

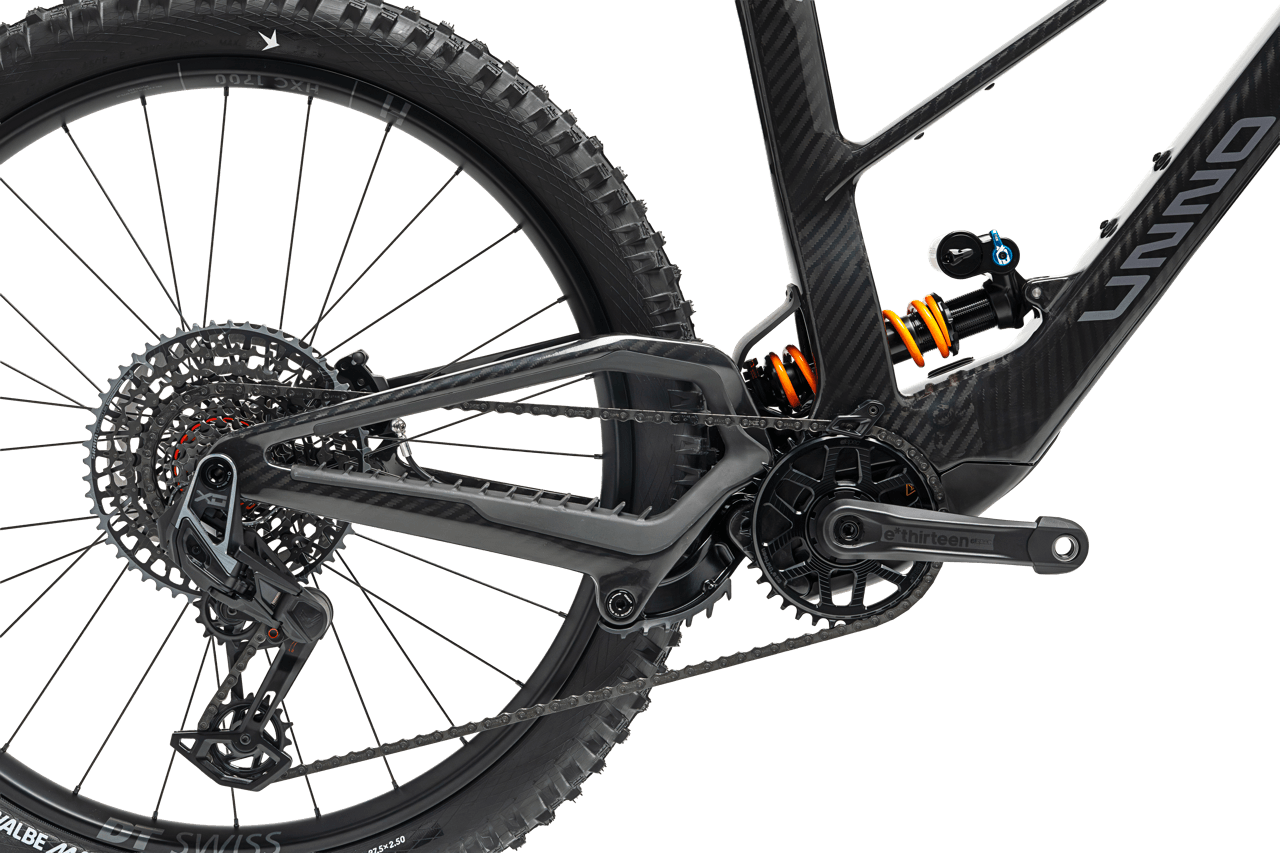

The MITH frame is designed around real-world riding.

Full carbon chassis, tested beyond ISO standards.
Oversized bearings with lifetime warranty.
Fully sealed system for durability in all conditions.
Clean cable routing, built for reliability and silence.

Every detail is there for one reason:​
To keep the bike performing, ride after ride.​

ENGINEERED TO LAST.
DESIGNED TO BE USED. ​

Some things are about what happens after 100 rides.​
After mud, pressurewashes, and longdays in themountains.​

We don’t design bikes to sit still and look good.​
We design them to be ridden, serviced, and pushed.​
That’s why every detail has a purpose.​

This is where the MITH is different.

TWILL CARBON WEAVE FINISH

The visible twill carbon finish isn’t just cosmetic. It reflects the real structure of the frame, no heavy paint layers, no unnecessary weight. Just material, refined and exposed. Premium, because it is.​

​

Additionally, our MITH frames are tested to twice the ISO standard, giving us the confidence to offer a lifetime warranty on every frame.​

Unknown image

EXTRA
SEATPOST INSERTION

More insertion depth, shorter seat tube.​

Run longer dropper posts and move freely on the bike, especially when it gets steep. The MITH comes with 150mm dropper posts in S1, 175/180mm in S2, and 200/210mm in S3.

Unknown image

COIL SHOCK COMPATIBLE

Built to handle both air and coil setups. The MITH is designed without limitations, no special links, no compromises. Just a suspension system that adapts to how you want to ride.​

For riders who prefer the feel of a coil, the MITH PRO PODIUM comes equipped with the FOX DHX2 SLS shock, delivering maximum traction and consistency on rough terrain.​​

Each size is paired with a tuned spring rate:​

S1: 275 lbs​

S2: 325 lbs​

S3: 400 lbs​​

Simple, effective, and ready to perform.

Unknown image

​

LIFETIME
WARRANTY

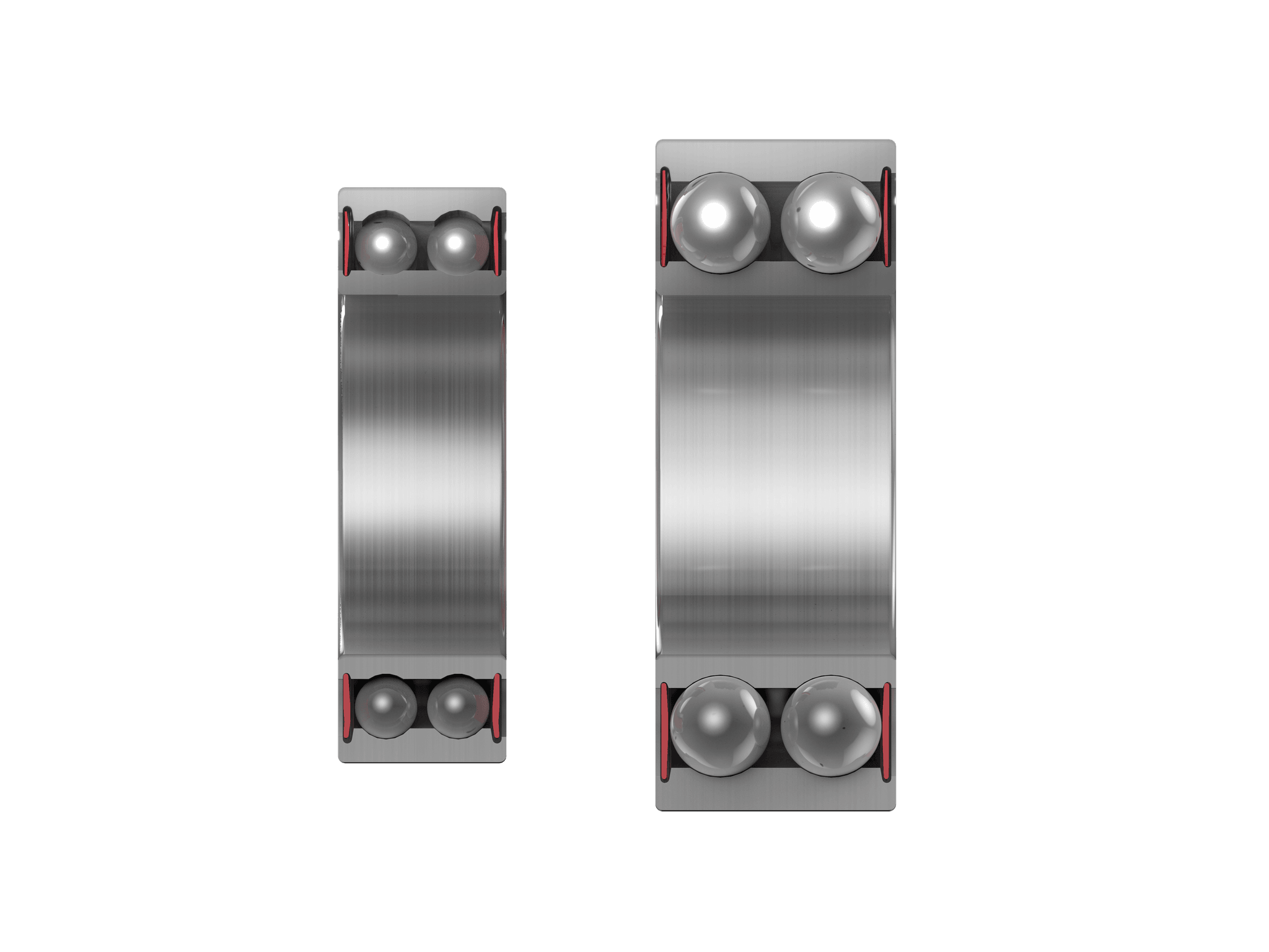

Oversized EnduroMAX bearings, designed for higher loads and longer life. Backed by a lifetime warranty.

Because durability shouldn't be optional:

Oversized EnduroMAX.
4x more load capacity.
Load capacity 7.21 kN.
Double row heavy duty.
Rubber seals increases lifetime.

Unknown image

SEALED AND
PROTECTED

All bearings are fully protected from mud, dirt, and water, ensuring long-term durability.​

Unknown image

NO HEADSET CABLE ROUTING

We’ve ditched the trend of routing cables through the headset. No cables through the headset. No hidden complexity. Better durability. Easier maintenance. No compromises for a noiseless riding experience.​

Unno MITH water bottle compatibility

KKIINNEEMMAATTIICCSS

KINEMATICS

UNNO
VIRTUAL PIVOT
SUSPENSION
REFINED

The suspension kinematics use an initial 30% of the curve with a higher progressive ratio for maximum small bump sensitivity, while the other 70% is less progressive to give enough platform to push the bike in
corners and provide good bottom-out resistance.

Unknown image

recommended
SAG setup

We propose 2 different SAG settings: 30% for a standard setup or 35% for an aggressive setup, especially on steeper trails.
When using 35%, the bike is 0.5º slacker.

Unknown image

EXCEPTIONAL GROUND CLEARANCE

The MITH comes with 155mm stock cranks to provide exceptional ground clearance and a better-centered riding position. The frame has room for up to 2.6” tires.

Unknown image

ggeeoommeettrryy

geometry

AGGRESSIVE GEOMETRY WITH 63.5º HEAD ANGLE

Unknown image

choose your size

Unknown image

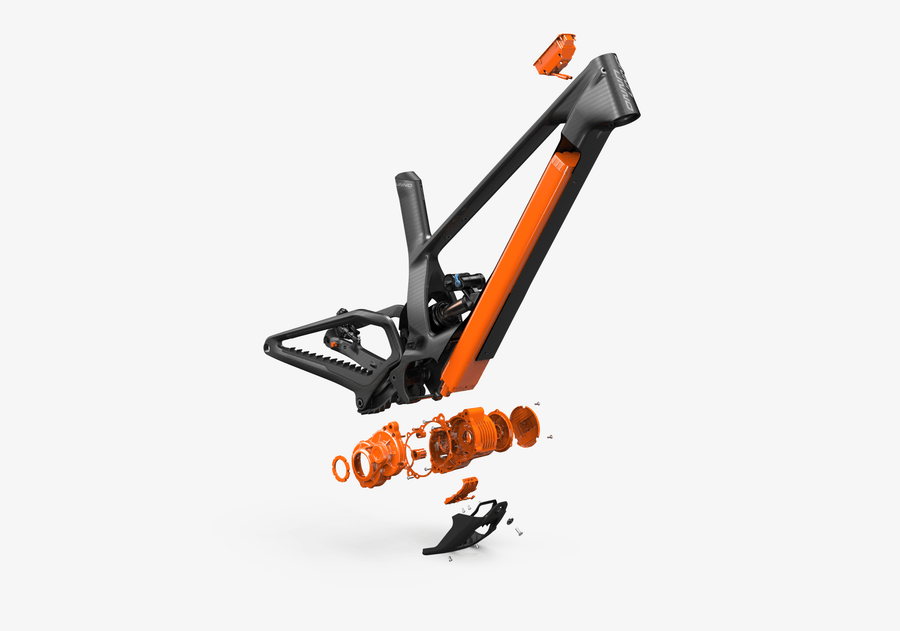

PROTECTED AND SEALED

Our newly-designed motor cover is built to handle any hard impacts. A built-in rubber seal keeps dirt and dust out of the frame.

Unknown image

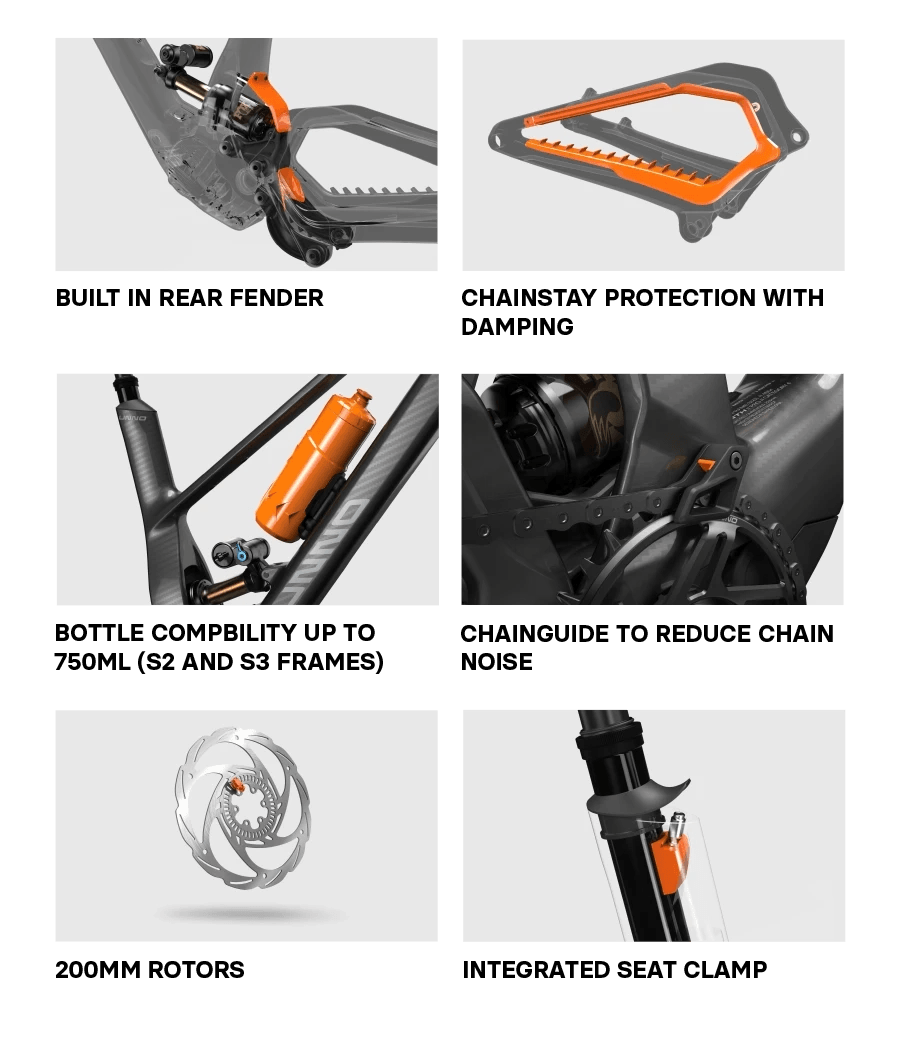

EVERY DETAIL MATTERS

Unknown image

AUTONOMY

The 800Wh battery and efficient system give you the freedom to keep going, whether it’s one long ride or lap after lap.​

Unknown image
Bike
MITH Pro
Distance
53.34km
Elevation gain
2506m
Avg speed
18.1km/h
Battery left
5%
View on Strava

STILL AHEAD

Others are catching up on power.​

We’ve been refining the ride.​

The MITH isn’t just built around a new drive system, it’s built around years of knowing what makes a bike fast.

BBuuiillddss

Builds

Factory

Factory

Factory

Motor
AVINOX
Battery
800Wh
Fork
Fox Podium Factory
Shock
Fox Float X2 Factory
Transmission
Sram XX Eagle AXS T-Type
Wheelset
DT SWISS HXC 1500
Dropper
Rock Shox Reverb AXS
Brakes
SRAM MAVEN ULTIMATE
Buy now

Pro Podium

Pro Podium

Pro Podium

Motor
Avinox
Battery
800Wh
Fork
Fox Podium Factory
Shock
FOX DHX2 SLS
Transmission
SRAM X0 EAGLE AXS T-TYPE
Wheelset
DT SWISS HXC 1700
Dropper
ONE UP V3
Brakes
SRAM MAVEN SILVER
Buy now

Pro

Pro

Pro

Motor
AVINOX
Battery
800Wh
Fork
FOX 38 Factory
Shock
Fox Float X2 Factory
Transmission
SRAM X0 Eagle AXS
Wheelset
DT SWISS HXC 1700
Dropper
ONEUP V3
Brakes
SRAM Maven Silver
Buy now

Race

Race

Race

Motor
AVINOX
Battery
800Wh
fork
FOX 38 Factory
Shock
Fox Float X Factory
Transmission
SRAM S1000 EAGLE AXS
Dropper
ONE UP V3
Wheelset
DT Swiss H1900
Brakes
SRAM Maven Base
Buy now

Framekit

Framekit

Framekit

Motor
Avinox
Battery
800Wh
HEADSET
ACROS Block-Lock
Buy now
