An evolution that speaks for itself. The new MITH eliminates the barriers between regular and electric bikes regarding look and riding feel while offering the best range and power on the market.

170/160mm of travel, Mullet setup, and 800Wh battery.

Designed and engineered in Barcelona.

Buy mith proBUY MITH RACENEED MORE INFO
Unknown image

EE--SSYYSSTTEEMM

E-SYSTEM

WORLDS LEANEST
e-MTB FRAME EQUIPPED WITH AN 800Wh BATTERY

The new MITH looks and rides like nothing else you have previously experienced.

Unknown image

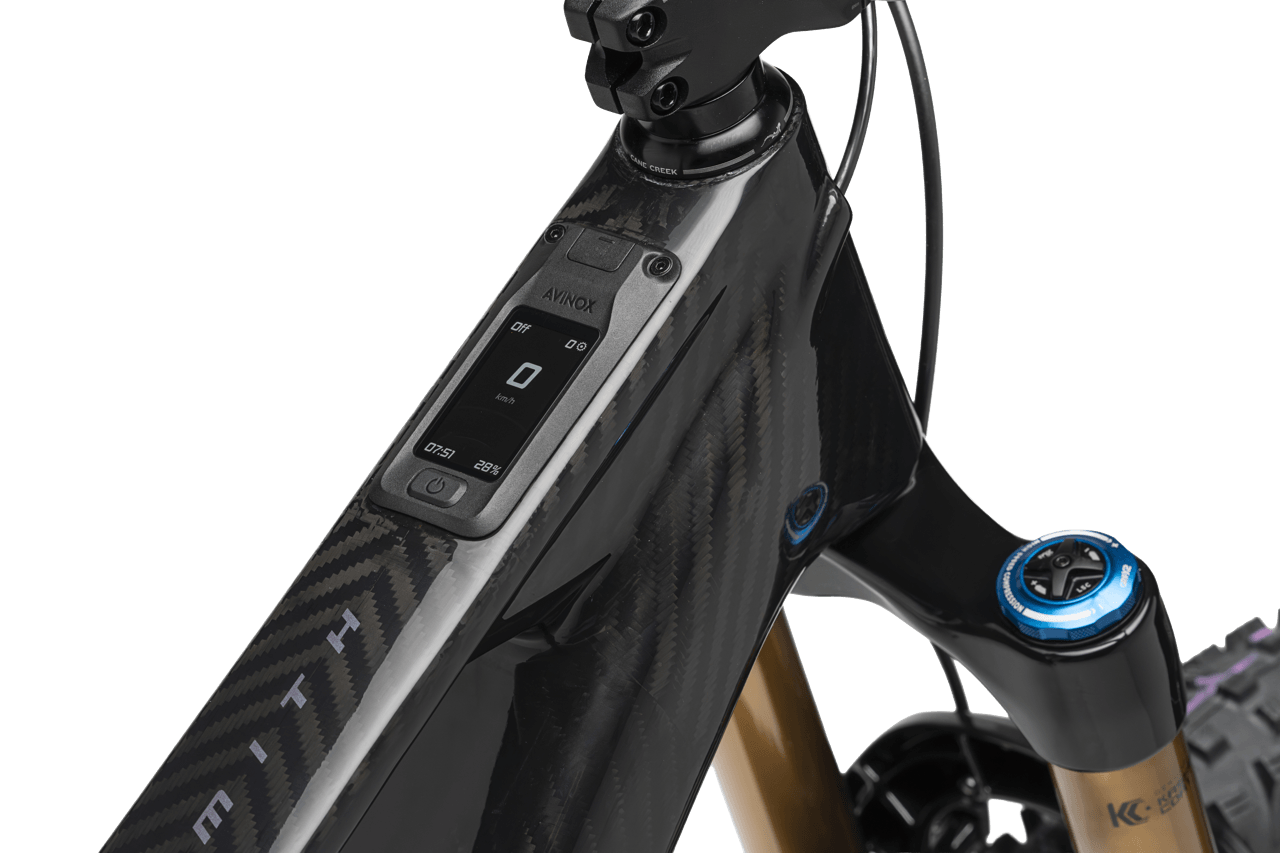

DJI AVINOX - THE MOST POWERFUL DRIVE SYSTEM AVAILABLE

105Nm in normal mode and 120Nm in Boost. Drive unit 2,52kg and 800Wh battery 3,74kg. Battery charged in 2:25h with fast charger. 2 inch OLED tactile display. Ambient light sensor. GPS, IMU, barometer, compass. Torque/cadence/wheel speed sensor. 4G connection with real-time bike location. Security and alarm system. Seamless integration with DJI products.

Unknown image

FULL GRAVITY BUILD WITH DH CASING TIRES

Unknown image

DDEEVVEELLOOPPMMEENNTT

DEVELOPMENT

TWILL CARBON WEAVE FINISH

The unique UNNO look is back on our Factory & Pro builds. The twill fabric finish is not only cosmetic but adds extra impact resistance. Additionally, our MITH frames are tested up to 2x the ISO norm, making us very confident to offer a lifetime warranty on any frame.

Unknown image

EXTRA
SEAT POST INSERTION

We've shortened the seat tube and increased the insertion by 60mm while keeping our disruptive and unique frame design.

Now, the MITH comes with 150mm dropper posts in S1, 180mm in S2, and 210mm in S3.

Unknown image

compare
new vs old

Unknown image

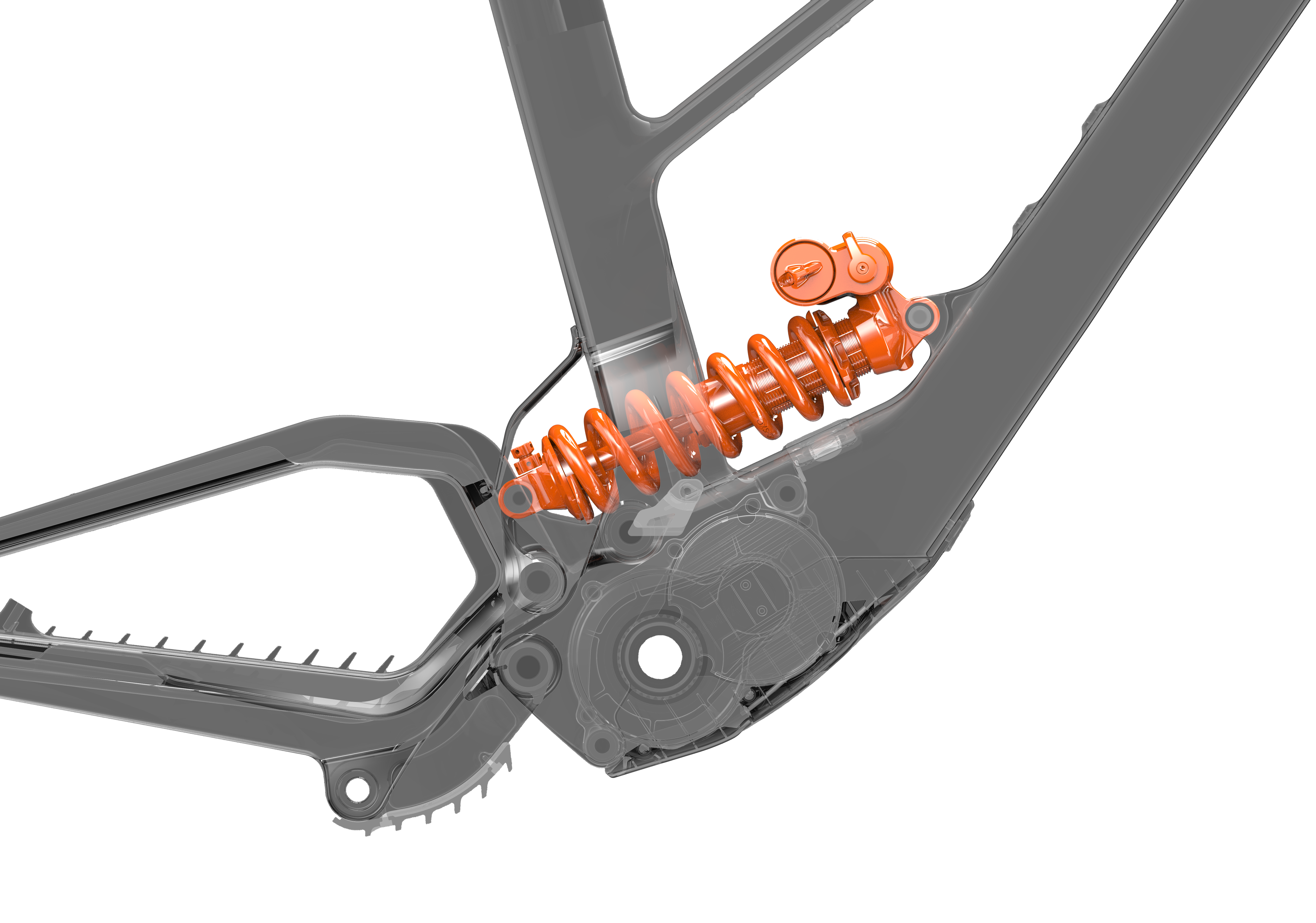

ACCESSIBLE SHOCK AND COIL COMPATIBLE

The shock is now easily accessible for making setting adjustments and hassle-free maintenance, and the frame is compatible with coil shocks, too.

Unknown image
Unknown image

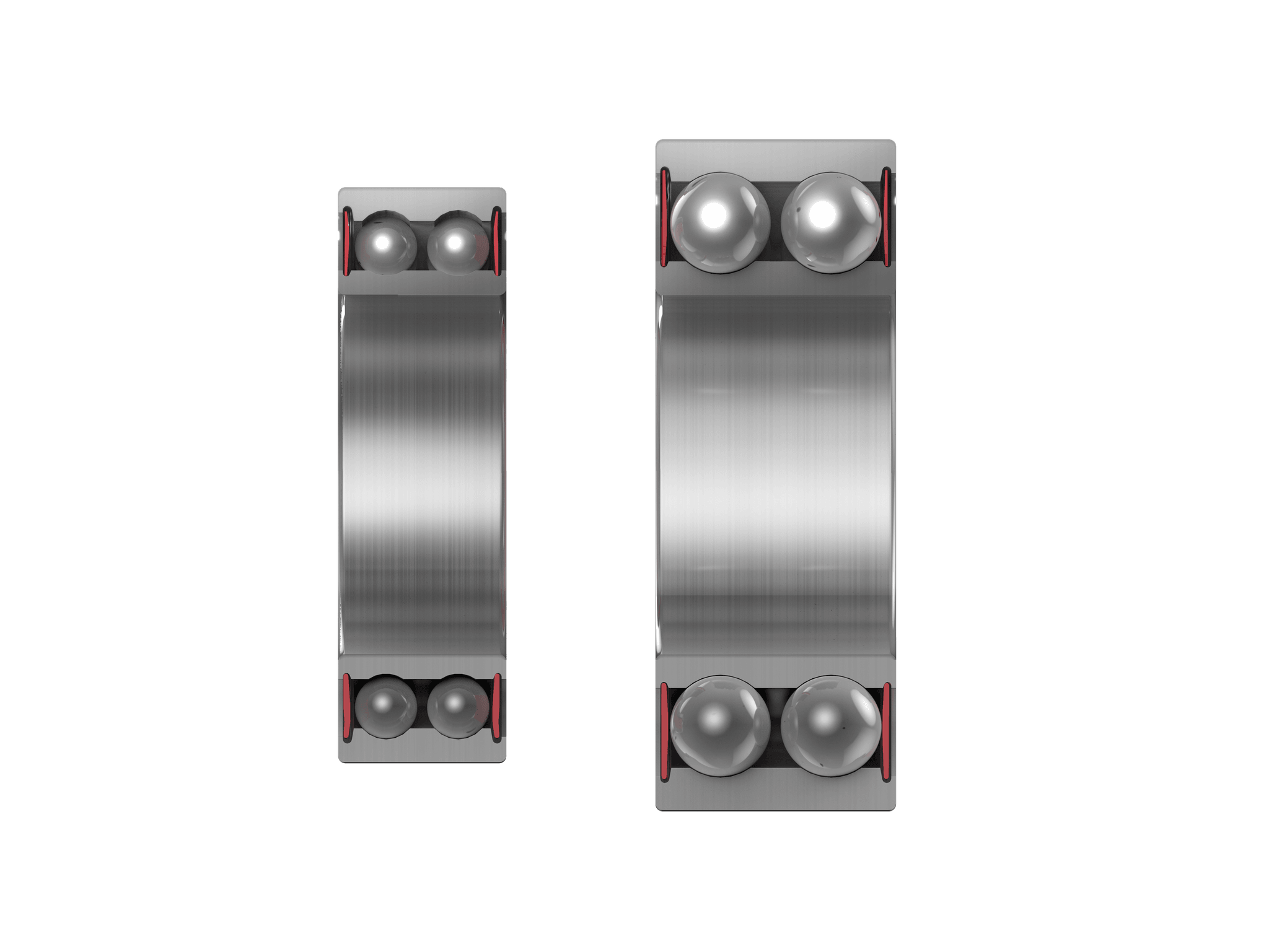

DUST GUARDS
PROTECTION

All bearings are shield from mud, dirt, and water, enhancing their durability.

Unknown image

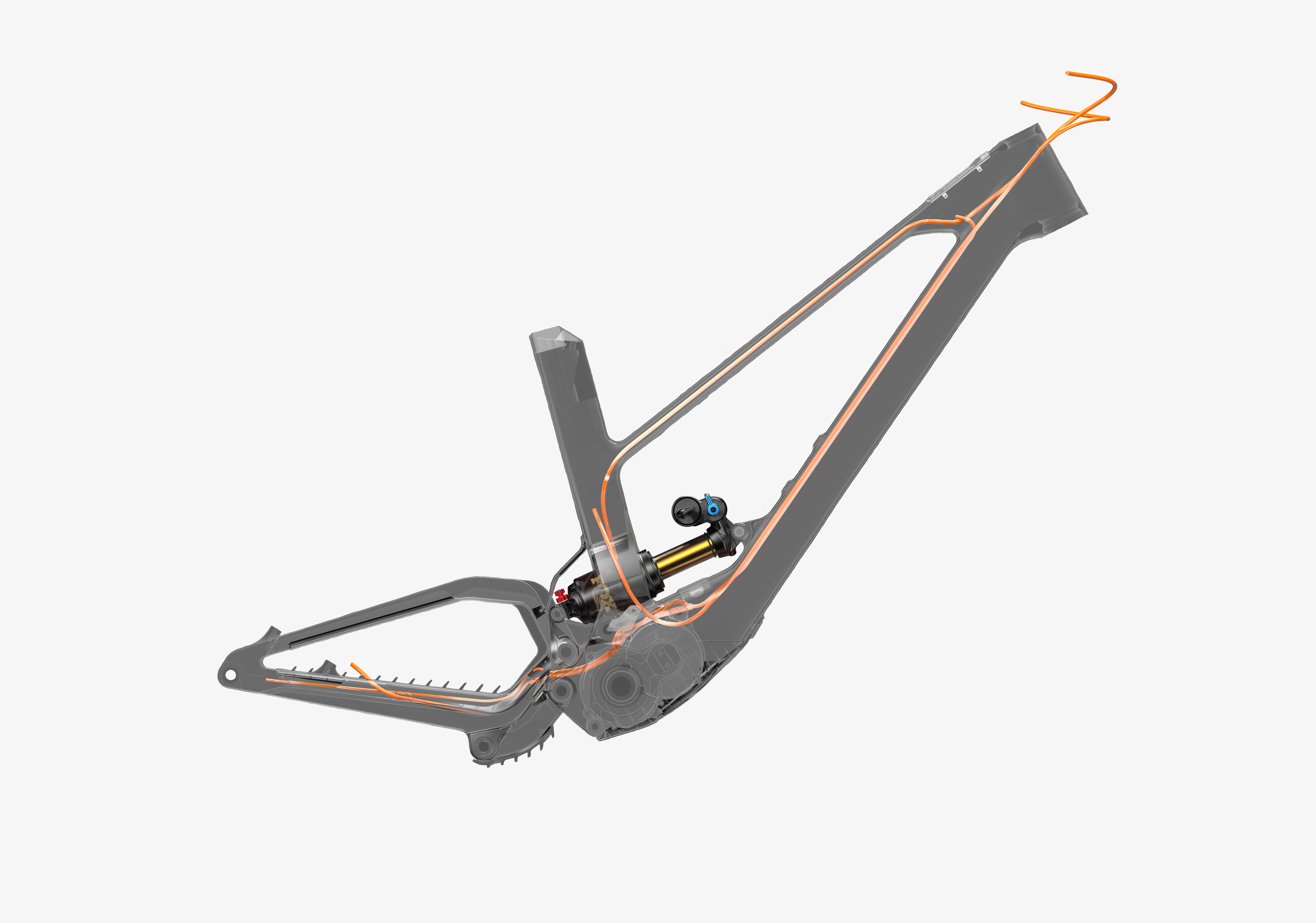

NO HEADSET CABLE ROUTING

We’ve ditched the trend of routing cables through the headset, gaining durability and ease of service. Additionally, the routing is now fully guided for a noiseless riding experience.

Unno MITH water bottle compatibility

KKIINNEEMMAATTIICCSS

KINEMATICS

UNNO
VIRTUAL PIVOT
SUSPENSION
REFINED

The suspension kinematics use an initial 30% of the curve with a higher progressive ratio for maximum small bump sensitivity, while the other 70% is less progressive to give enough platform to push the bike in
corners and provide good bottom-out resistance.

Unknown image

recommended
SAG setup

We propose 2 different SAG settings: 30% for a standard setup or 35% for an aggressive setup, especially on steeper trails.
When using 35%, the bike is 0.5º slacker.

Unknown image

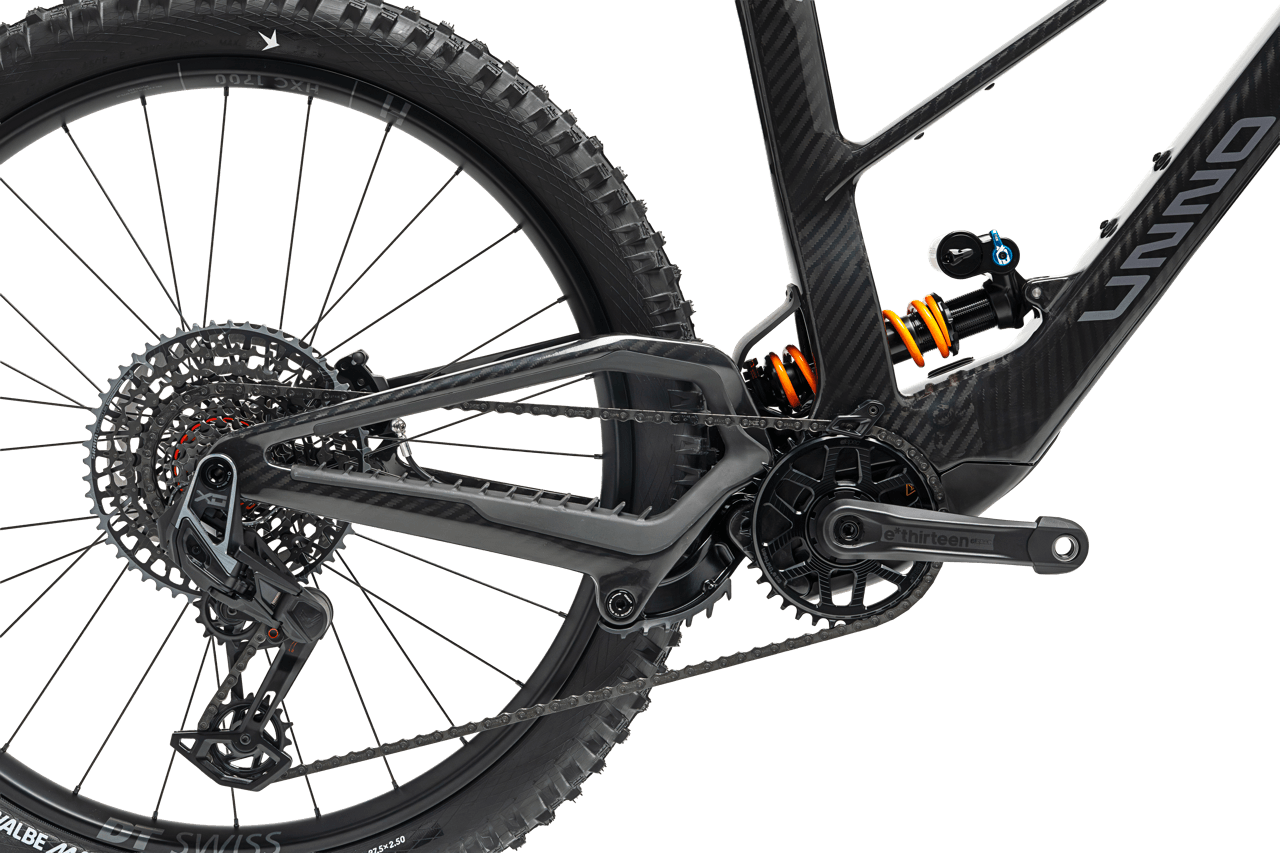

EXCEPTIONAL GROUND CLEARANCE

The MITH comes with 155mm stock cranks to provide exceptional ground clearance and a better-centered riding position. The frame has room for up to 2.6” tires.

Unknown image

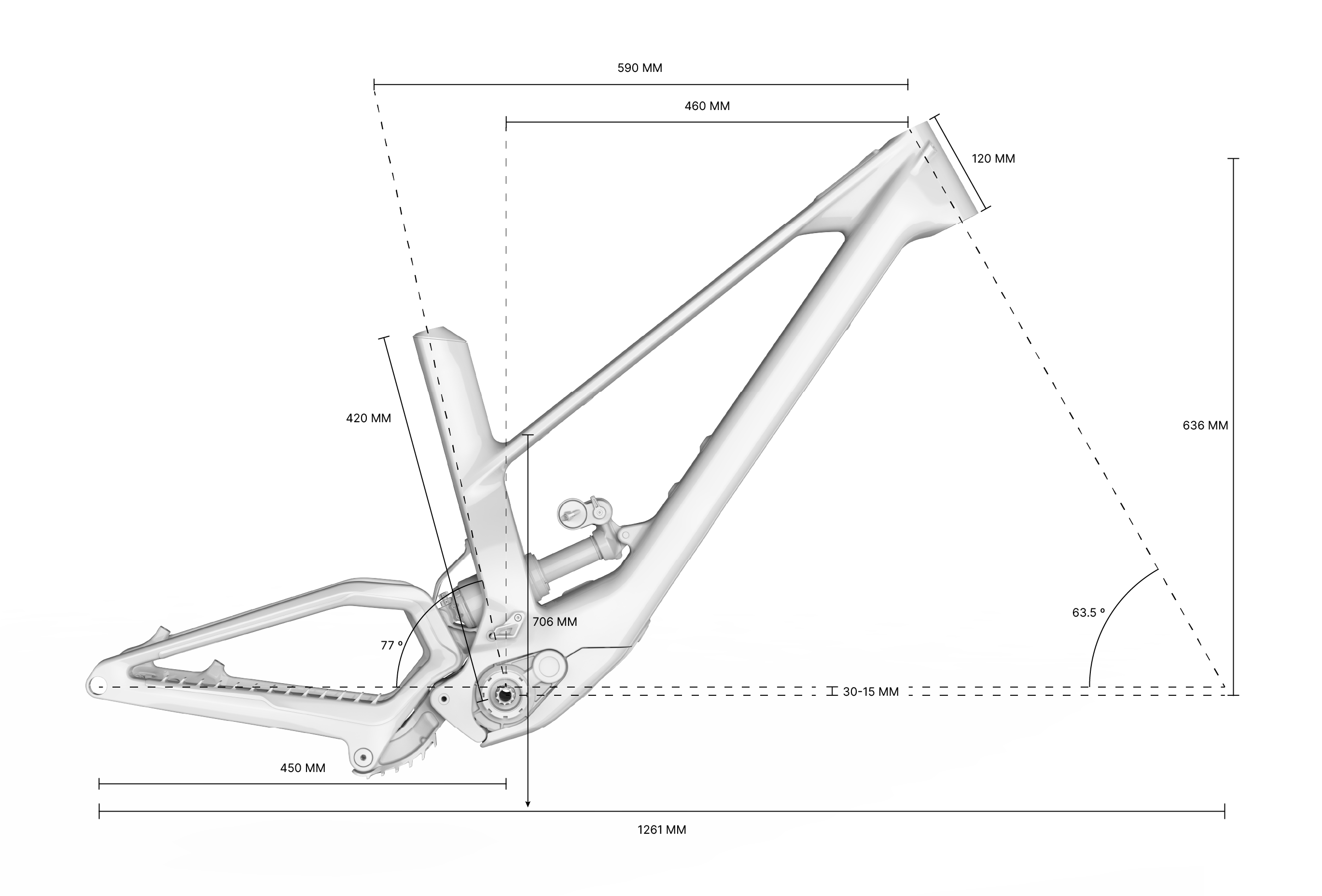

AGGRESSIVE GEOMETRY WITH 63.5º HEAD ANGLE

Unknown image

choose your size

Unknown image

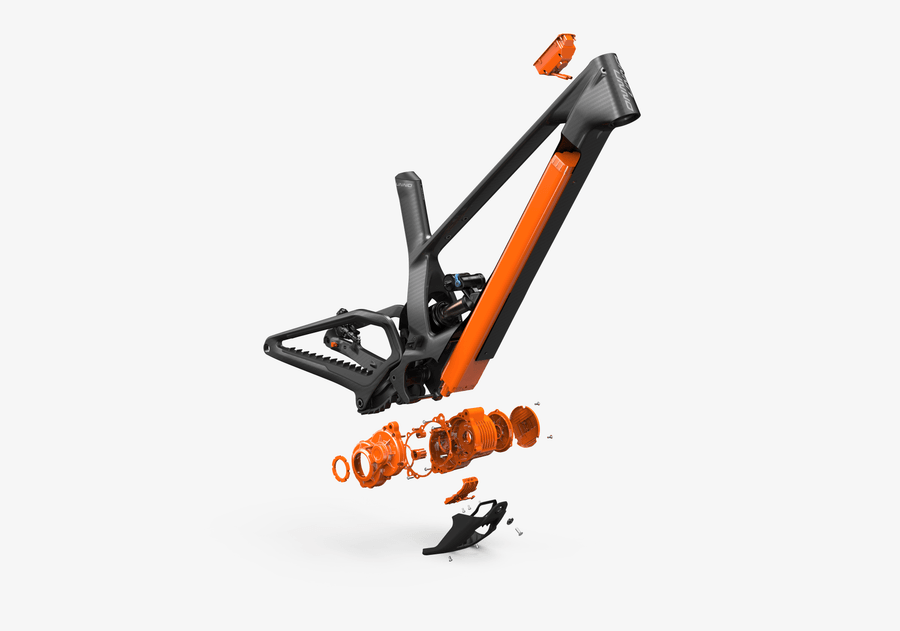

PROTECTED AND SEALED

Our newly-designed motor cover is built to handle any hard impacts. A built-in rubber seal keeps dirt and dust out of the frame.

Unknown image

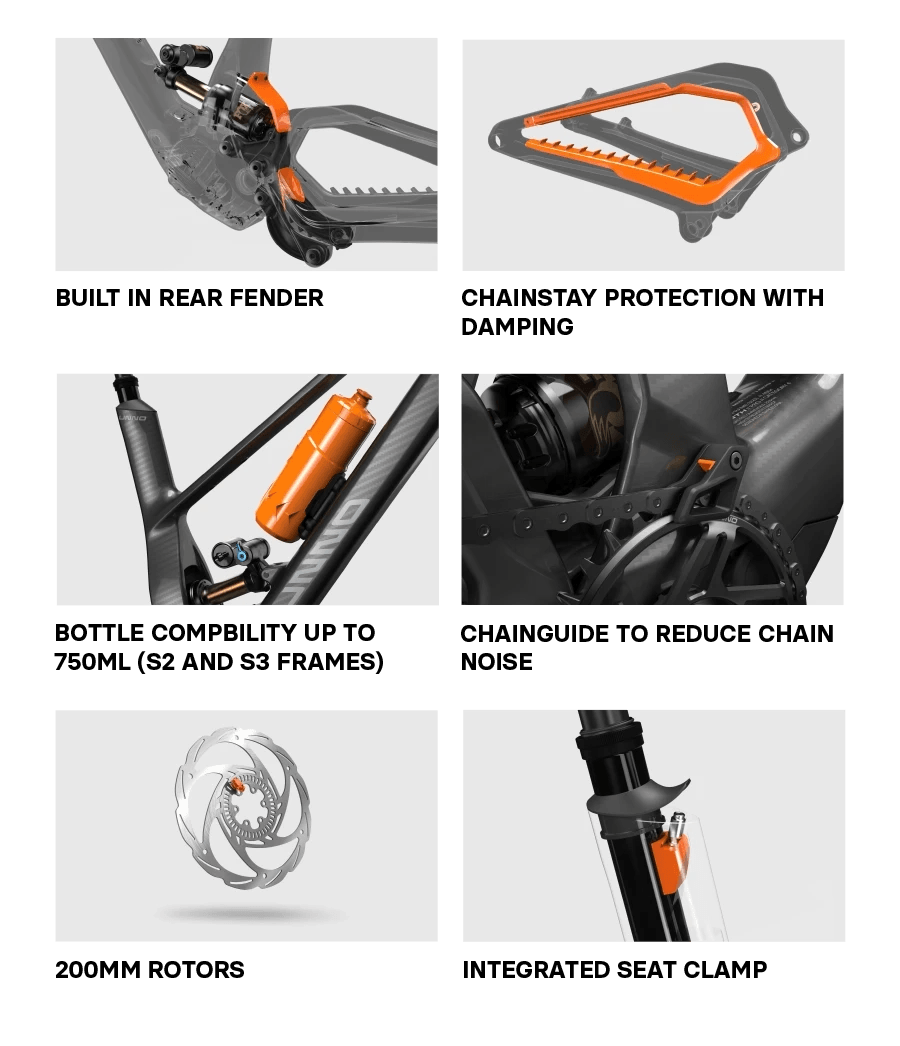

MORE UPGRADES AND NEW FEATURES

Unknown image

REAL AUTONOMY.

Going for an endless adventure in the woods? Or racing against the sunset? You decide how you spend the 800Wh battery.

Unknown image
Bike
MITH Pro
Distance
53.34km
Elevation gain
2506m
Avg speed
18.1km/h
Battery left
5%
View on Strava

BBuuiillddss

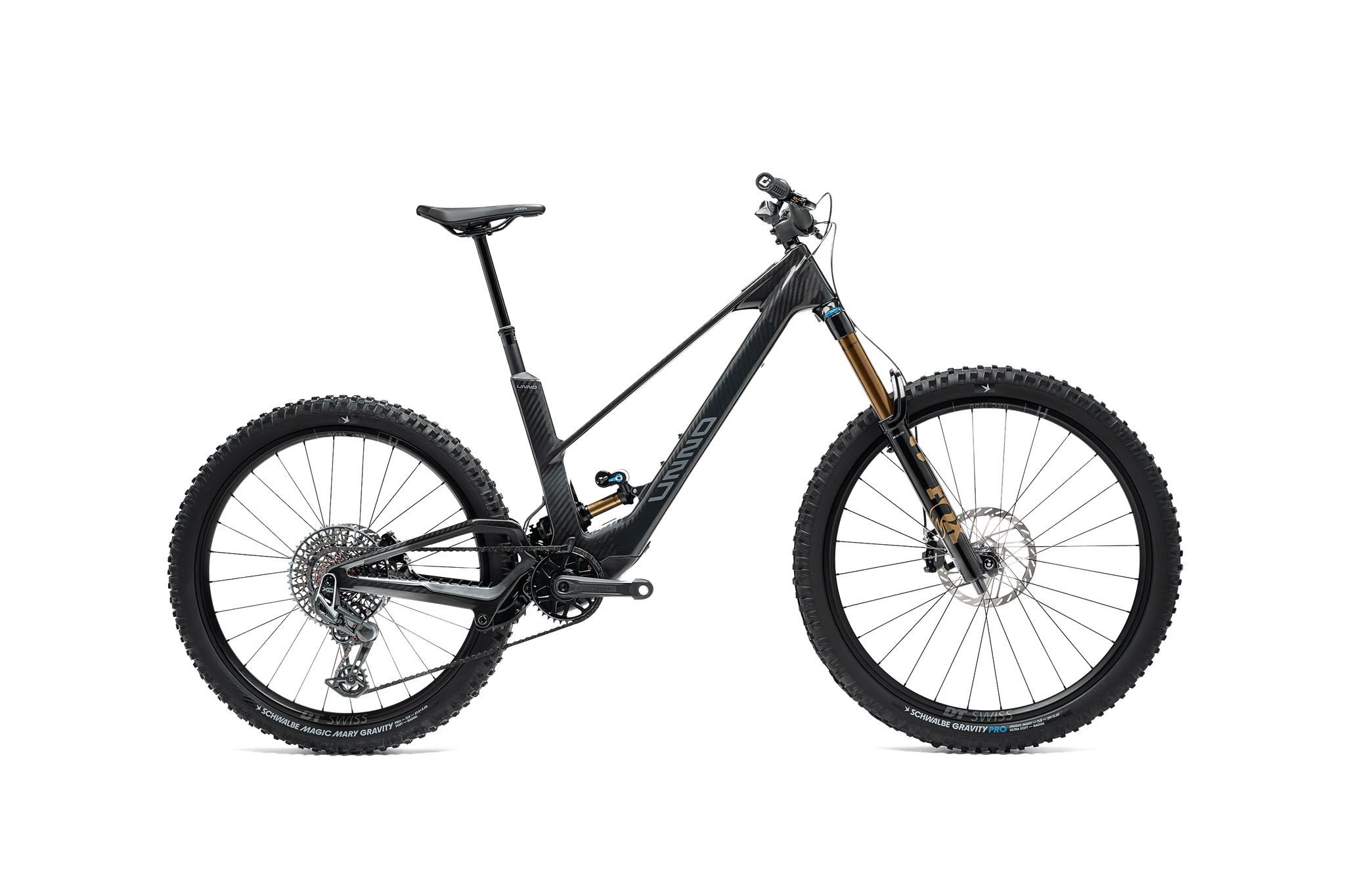

Builds
MSRP 10 295 CHF

Pro

Pro
MSRP 10 295 CHF

Pro

Motor
DJI AVINOX
Battery
800Wh
Fork
FOX 38 Factory
Shock
Fox Float X2 Factory
Transmission
SRAM X0 Eagle AXS T-Type
Wheelset
NEWMEN Phase 30 Carbon
Dropper
ONEUP V3
Barkes
Formula Cura 4
Buy
MSRP 8 295 CHF

Race

Race
MSRP 8 295 CHF

Race

Motor
DJI AVINOX
Battery
800Wh
fork
FOX 38 Factory
Shock
Fox Float X Factory
Transmission
SRAM Eagle 70 AXS T-Type
Wheelset
NEWMEN Performance 30 Alloy
Dropper
ONEUP V3
Brakes
Formula Cura 4
Buy
