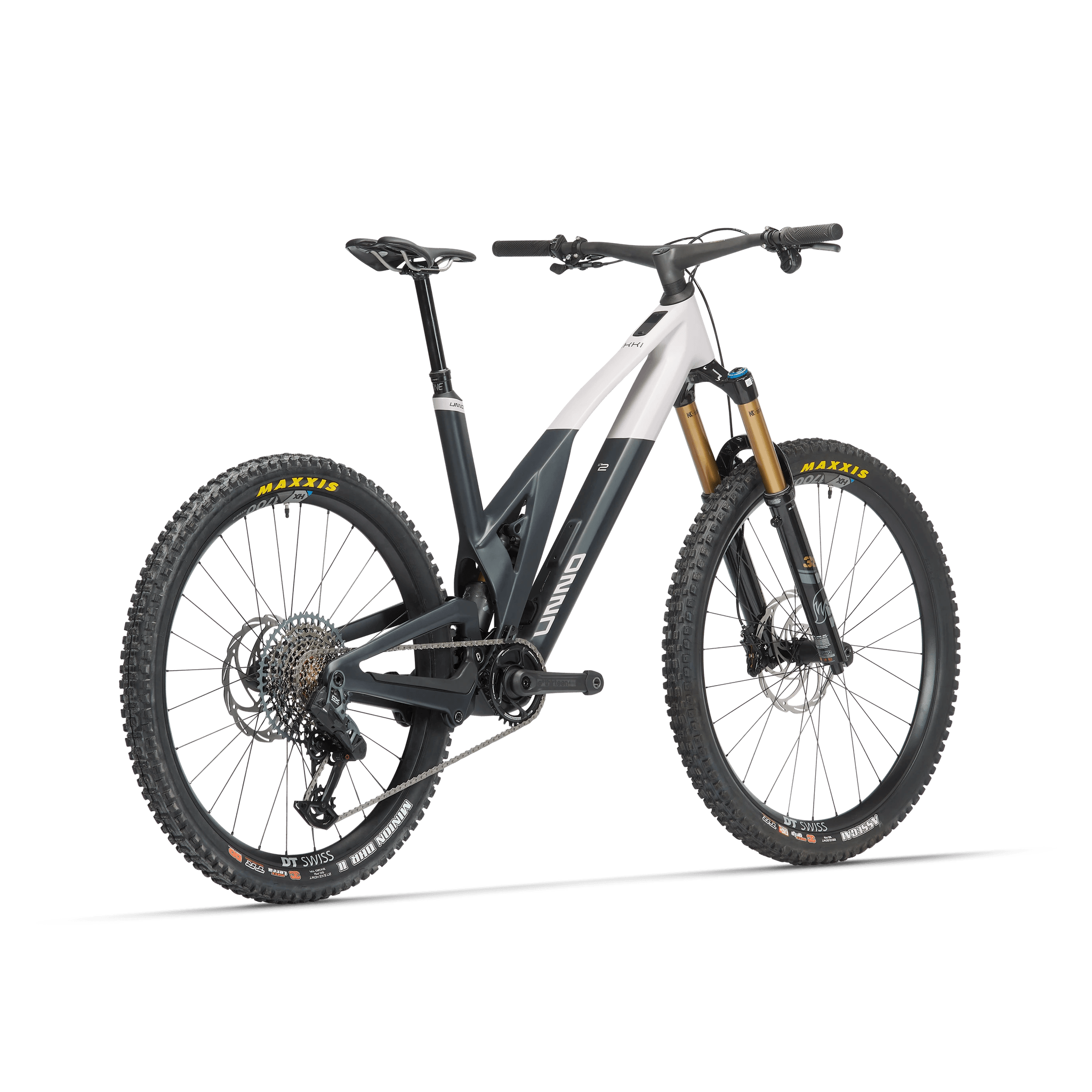

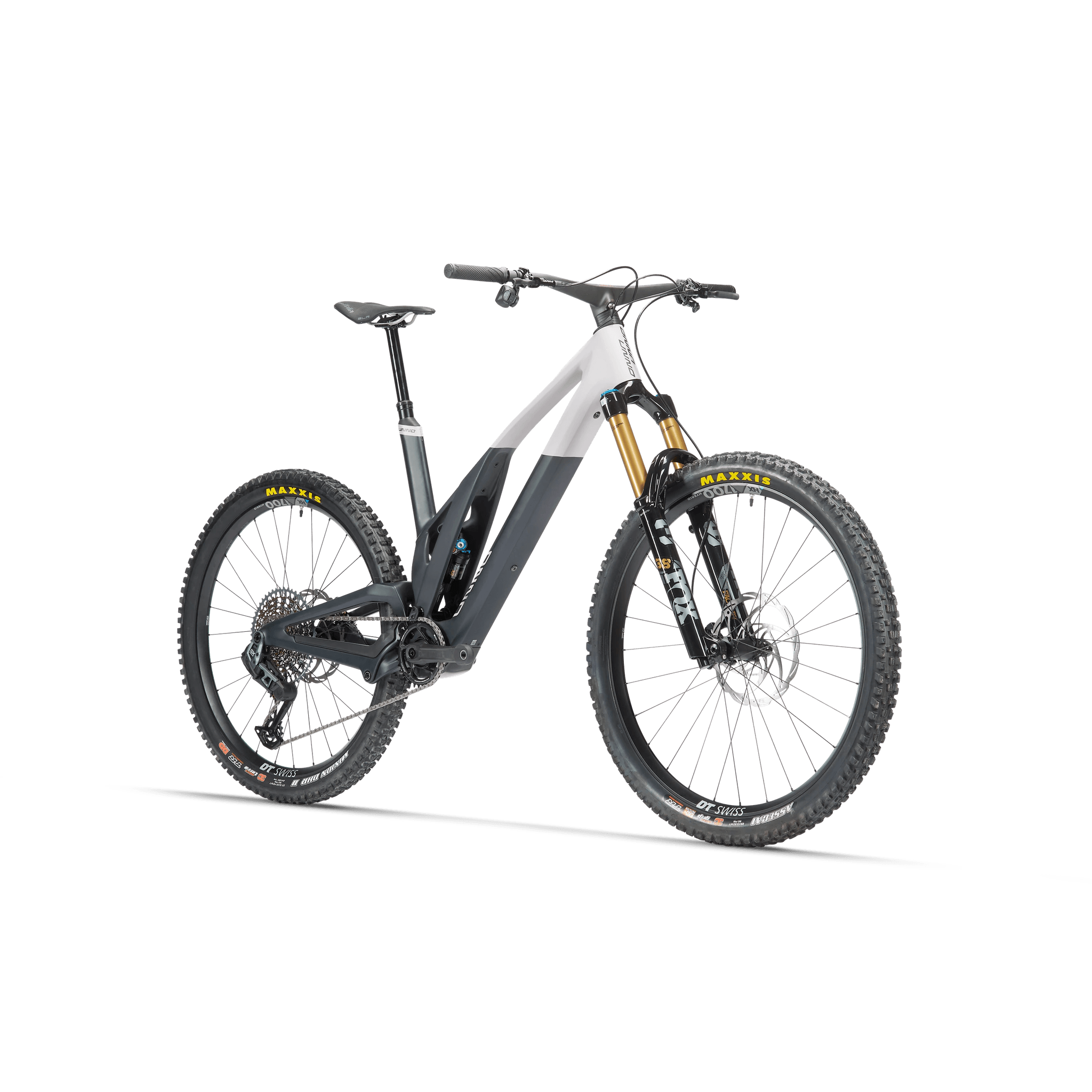

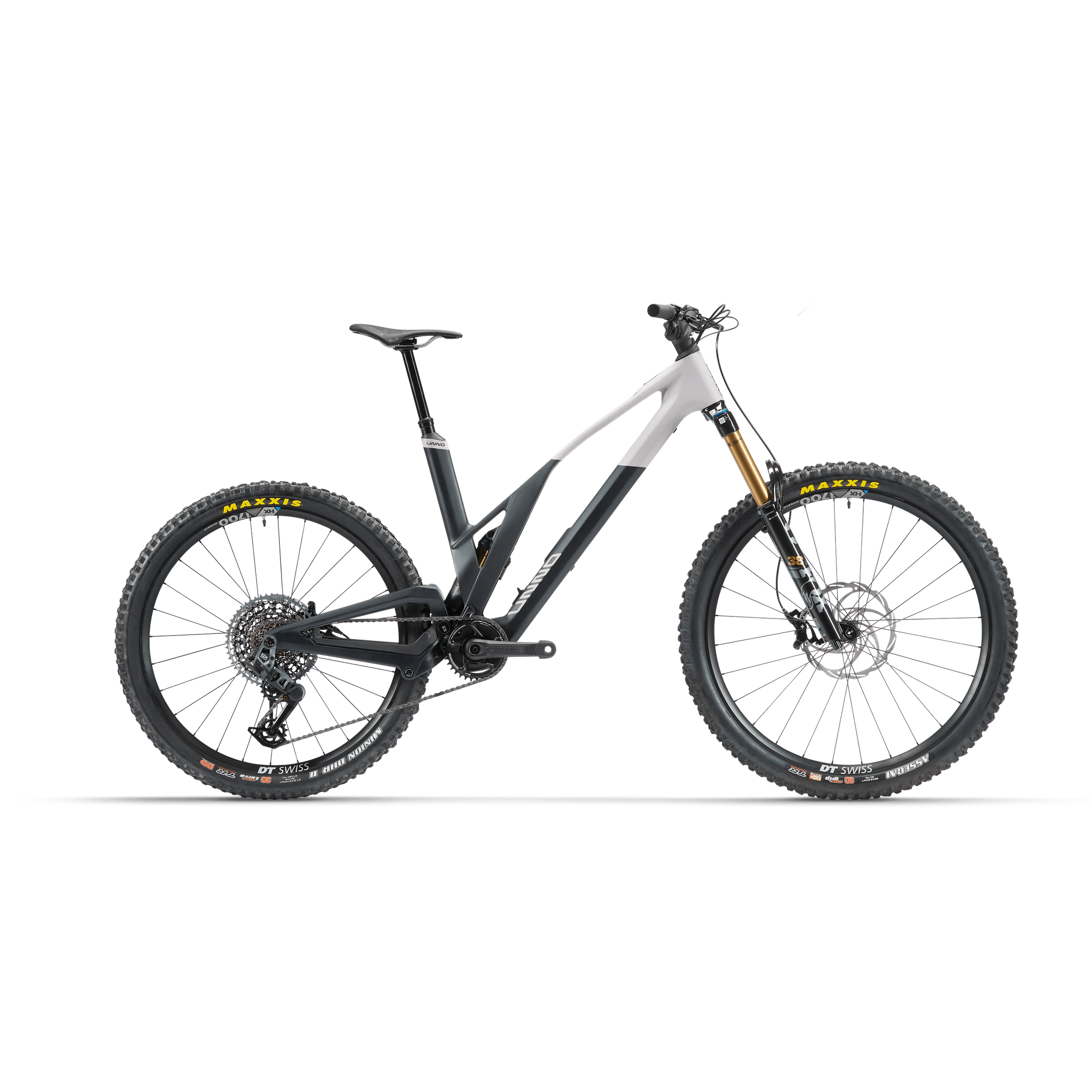

IKKI Race | UNNO

IKKI

Unknown image

Unknown image

Unknown image

Race

10.295€

Size

S1

Sold out

S2

Sold out

S3

Sold out

GGeeoommeettrryyGGeeoommeettrryy

Pioneers in geometries

Welcome to our reach based sizing. Remember that at 35% recommended SAG our bikes are longer, lower and slacker than it might look.

Unknown image

SSppeeccssSSppeeccss

Check the Race build

Our most popular spec. Featuring Fox Factory suspensions, SRAM GX AXS T-type transmission and DT Swiss 1700 wheelsets.

Frame & Motor

Frame
Unno IKKI: Carbon fibre monocoque with 160mm of rear travel. Virtual pivot suspension system. Integrated display, battery, chain guide and seat tube clamp. Motor protector. EnduroMAX Bearings. Internal cable routing. Boost thru axle 12x148. Post Mount brake system. Max tire width: 2.6”. Oceanworks recycled plastic parts. Recycled rubber protectors. Recommended sag: 35% (+/- 5%).
Motor
TQ HPR50: With Harmonic PingRing. 50Nm power. 300W power. Connection ready with ANT+ app.
Battery
TQ 360Wh: Integrated.
Display
TQ HPR50 Display: Integrated in top tube.
Controller
TQ HPR50 Remote: Compact and ergonomic design, accessible from the grip.
Headset
Acros Internal Cable Routing: IS52. 1.5 / 1.5, with Acros spider with entry ports for cable routing.

Suspensions

Fork
Fox 38 Factory: 170mm travel. Kashima coating. Grip 2 damper. 15x110 axle. Adjustments: HSC, LSC, HSR, LSR. 44mm offset.
Shock
Fox Float X2 Factory: 230x65mm. Kashima Coating. 2-pos lever. VVC Rebound.
Adjustments: HSC, LSC, HSR, LSR.

Transmission

Derailleur
SRAM GX AXS T-Type: 12 speed. AXS Wireless. T-type.
Controller
SRAM AXS Pod: 12 speed. Wireless.
Cassette
SRAM GX T-Type: XS-1275. 12 speed.
Chain
SRAM GX T-Type: 12 speed. Flat top.
Chainring
E*Thirteen E*spec: Aluminium, 34T, TQ Direct Mount.
Crankset
SRAM GX T-Type: 170mm length. 34t chainring.

Wheelset

Wheels
DT Swiss HX1700 Spline: Mullet 29" Front and 27.5" Rear. E-Bike specific. DT 350 hub. 30mm inner width.
Front Tyre
Continental Kryptotal-F Enduro: 29x2.40. Foldable skin SL. Black/Black.
Rear tyre
Continental Kryptotal-R Enduro: 27.5x2.40. Foldable skin SL. Black/Black.

Brakeset

Brakes
Formula Cura 4: 4x18mm pistons on Caliper. SRAM Mixmaster. Sintered Pads. Axial Master Cylinder. Forged Aluminium. 850mm front hose and 2000mm rear hose.
Discs
Formula Monolitic: 220mm front and 203mm rear rotors. Thickness: 2.35mm. Extreme lateral stiffness, anti-noise and anti-vibrations design.

Cockpit & Seat

Cockpit
DEUX Enduro Integrated: With integrated and hidden wedge. Internal fork tube clamp. 800mm width. 40mm length. 20mm rise.
Dropper
OneUp V2: Mechanical. Travel: 120mm for S1, 150mm for S2 and 180mm for S3.
Saddle
Selle Italia: SLR Boost.

DDoowwnnllooaaddssDDoowwnnllooaaddss

User Guide English

Download · 31 05 2023
